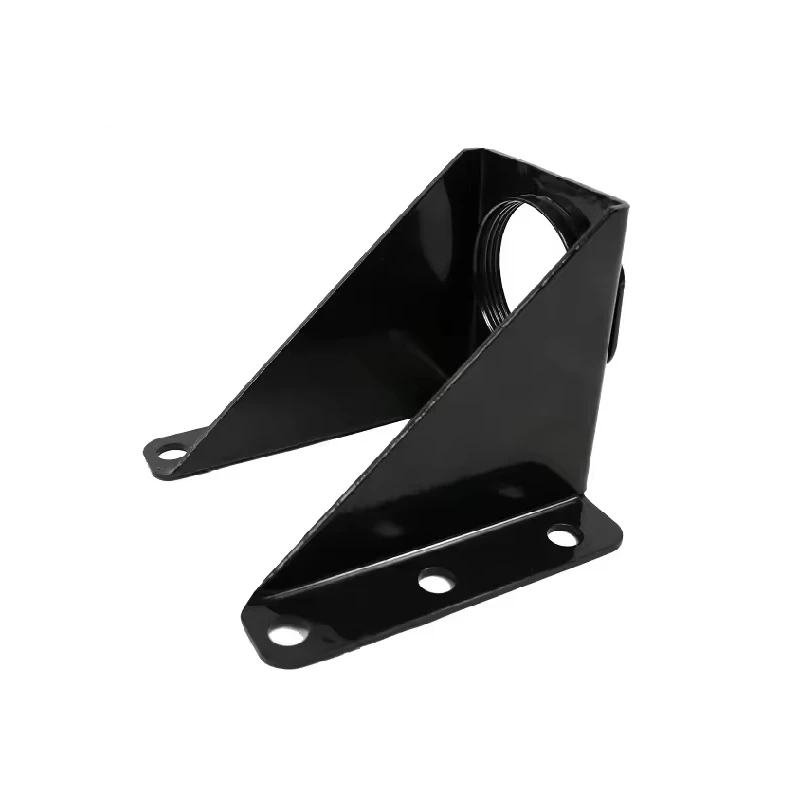

Industrial Load Bearing Support Bracket

Industrial load bearing support brackets are cantilever components fixed at one end to an equipment frame and carrying a fixture or workpiece at the other. Because a cantilever naturally sags under load, the design centers on anti-deflection structure rather than simply adding thickness. A one-piece bend with embossed reinforcement ribs is used, and the rib position, depth, and length are derived from cantilever length and load distribution to raise stiffness with minimal added weight. Single-arm static capacity ranges from 50 to 500 kg, with bending resistance strengthened as the arm lengthens. Material is heavy SPCC or SUS304, 2.0-4.0 mm thick, locally thickened to 5 mm at high-stress cantilever roots. The mounting end uses flange or hinge holes sized to pins or bolts, with fit clearance held to 0.05-0.1 mm so the arm mounts firmly without play or vibration. Heavy-duty wear-resistant powder coating or hot-dip galvanizing protects it for long service, and angle-adjustable or vibration-damping support forms are available where the arm needs repositioning or isolation.

A load-rated bracket has to repeat the same deflection behavior on every unit, since a sagging arm shifts a fixture out of alignment across a whole machine line. Producing these from a confirmed drawing with calculated rib layout keeps rated deflection and mounting clearance consistent from first article to repeat orders, which is what prevents field re-leveling and repeated maintenance. Local thickening combined with post-load stress control also means the rated capacity can be trusted at the cantilever length the buyer specifies, rather than relying on a generic off-the-shelf bracket that is underrated for the reach. That repeatability across a batch of arms is what lets an equipment builder standardize a fixture support without revalidating every shipment.
